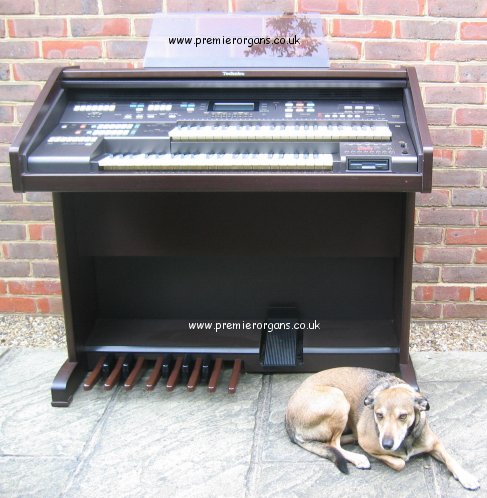

Technics EA3

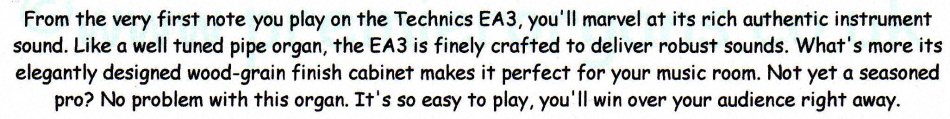

From the very first note you play on the Technics EA3, you'll marvel at its rich authentic instrument sound. Like a well tuned pipe organ, the EA3 is finely crafted to deliver robust sounds. What's more its elegantly designed wood-grain finish cabinet makes it perfect for your music room. Not yet a seasoned pro? No problem with this organ. It's so easy to play, you'll win over your audience right away.

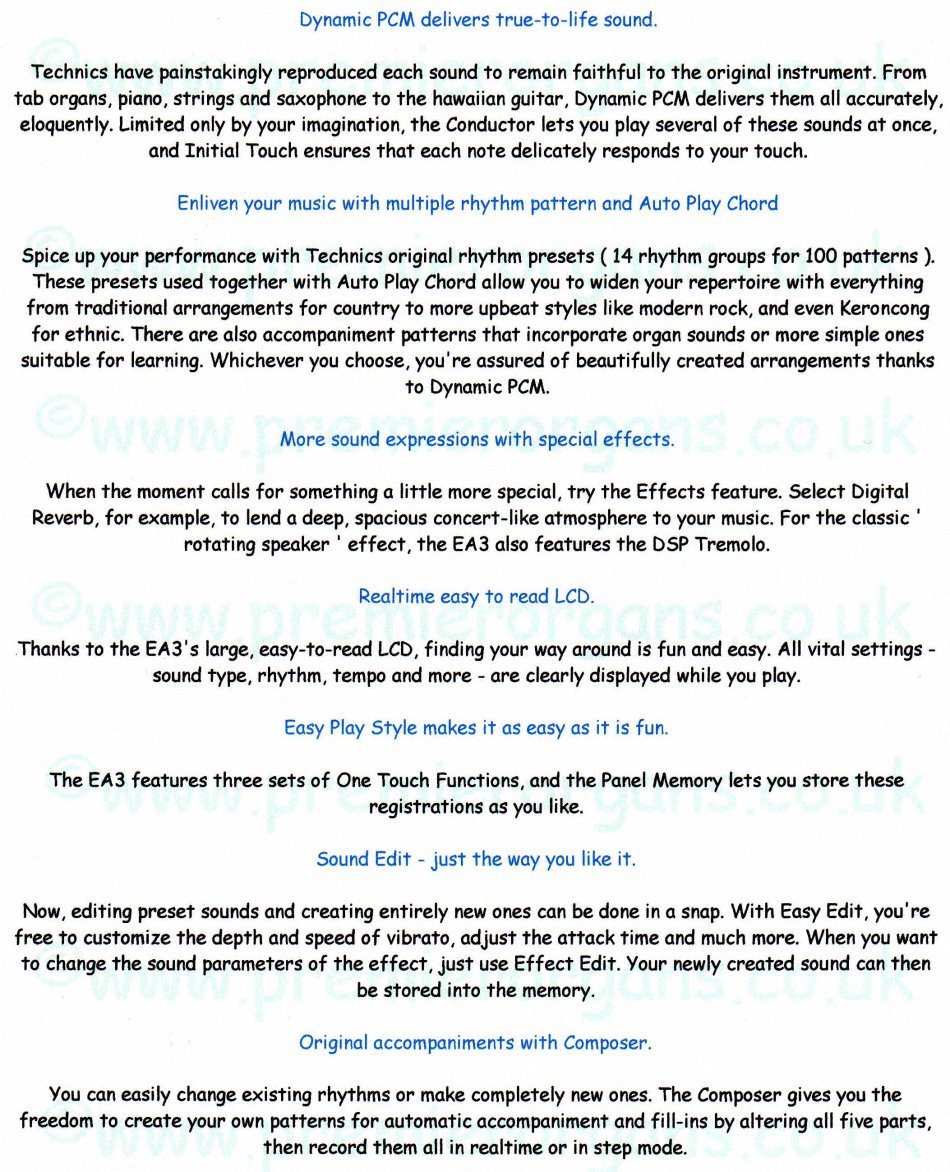

Dynamic PCM delivers true-to-life sound.
Technics have painstakingly reproduced each sound to remain faithful to the original instrument. From tab organs, piano, strings and saxophone to the hawaiian guitar, Dynamic PCM delivers them all accurately, eloquently. Limited only by your imagination, the Conductor lets you play several of these sounds at once, and Initial Touch ensures that each note delicately responds to your touch.
Enliven your music with multiple rhythm pattern and Auto Play Chord
Spice up your performance with Technics original rhythm presets ( 14 rhythm groups for 100 patterns ). These presets used together with Auto Play Chord allow you to widen your repertoire with everything from traditional arrangements for country to more upbeat styles like modern rock, and even Keroncong for ethnic. There are also accompaniment patterns that incorporate organ sounds or more simple ones suitable for learning. Whichever you choose, you're assured of beautifully created arrangements thanks to Dynamic PCM.
More sound expressions with special effects.
When the moment calls for something a little more special, try the Effects feature. Select Digital Reverb, for example, to lend a deep, spacious concert-like atmosphere to your music. For the classic ' rotating speaker ' effect, the EA3 also features the DSP Tremolo.
Realtime easy to read LCD.
Thanks to the EA3's large, easy-to-read LCD, finding your way around is fun and easy. All vital settings - sound type, rhythm, tempo and more - are clearly displayed while you play.
Easy Play Style makes it as easy as it is fun.
The EA3 features three sets of One Touch Functions, and the Panel Memory lets you store these registrations as you like.
Sound Edit - just the way you like it.
Now, editing preset sounds and creating entirely new ones can be done in a snap. With Easy Edit, you're free to customize the depth and speed of vibrato, adjust the attack time and much more. When you want to change the sound parameters of the effect, just use Effect Edit. Your newly created sound can then be stored into the memory.
Original accompaniments with Composer.
You can easily change existing rhythms or make completely new ones. The Composer gives you the freedom to create your own patterns for automatic accompaniment and fill-ins by altering all five parts. Than record them all in realtime or in step mode.

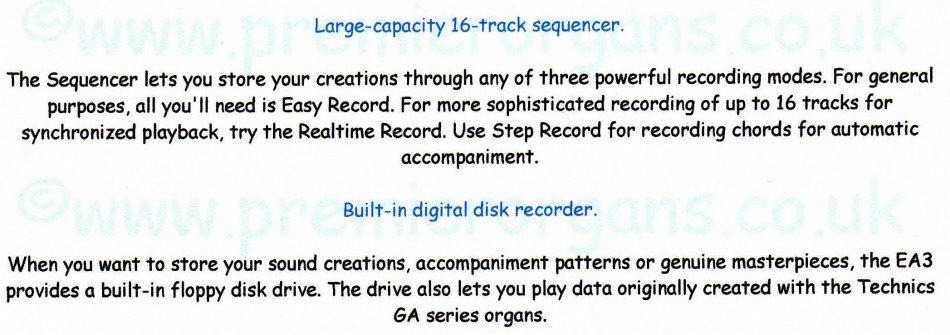

Large-capacity 16-track sequencer.
The Sequencer lets you store your creations through any of three powerful recording modes. For general purposes, all you'll need is Easy Record. For more sophisticated recording of up to 16 tracks for synchronized playback, try the Realtime Record. Use Step Record for recording chords for automatic accompaniment.
Built-in digital disk recorder.
When you want to store your sound creations, accompaniment patterns or genuine masterpieces, the EA3 provides a built-in floppy disk drive. The drive also lets you play data originally created with the Technics GA series organs.

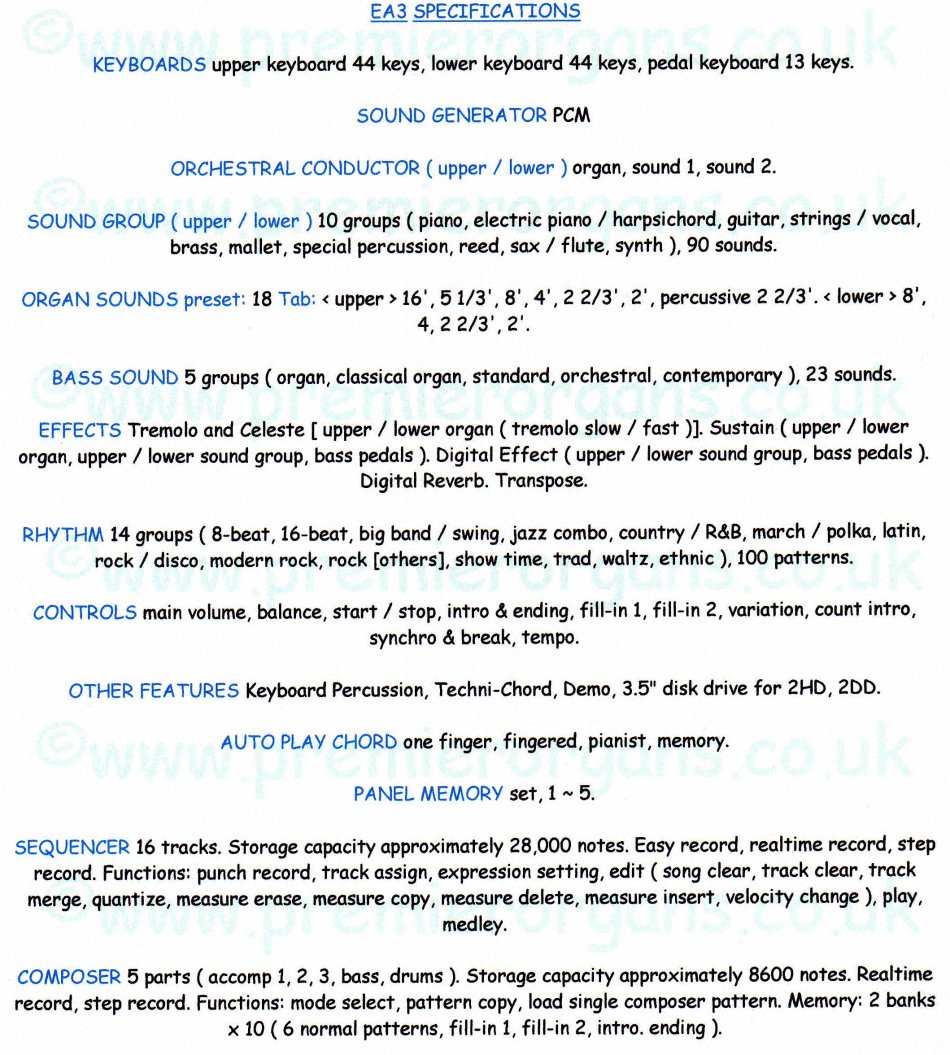

EA3 SPECIFICATIONS
KEYBOARDS upper keyboard 44 keys, lower keyboard 44 keys, pedal keyboard 13 keys.
SOUND GENERATOR PCM
ORCHESTRAL CONDUCTOR ( upper / lower ) organ, sound 1, sound 2.
SOUND GROUP ( upper / lower ) 10 groups ( piano, electric piano / harpsichord, guitar, strings / vocal, brass, mallet, special percussion, reed, sax / flute, synth ), 90 sounds.
ORGAN SOUNDS preset: 18 Tab: < upper > 16', 5 1/3', 8', 4', 2 2/3', 2', percussive 2 2/3'. < lower > 8', 4, 2 2/3', 2'.
BASS SOUND 5 groups ( organ, classical organ, standard, orchestral, contemporary ), 23 sounds.
EFFECTS Tremolo and Celeste [ upper / lower organ ( tremolo slow / fast )]. Sustain ( upper / lower organ, upper / lower sound group, bass pedals ). Digital Effect ( upper / lower sound group, bass pedals ). Digital Reverb. Transpose.
RHYTHM 14 groups ( 8-beat, 16-beat, big band / swing, jazz combo, country / R&B, march / polka, latin, rock / disco, modern rock, rock [others], show time, trad, waltz, ethnic ), 100 patterns.
CONTROLS main volume, balance, start / stop, intro & ending, fill-in 1, fill-in 2, variation, count intro, synchro & break, tempo.
OTHER FEATURES Keyboard Percussion, Techni-Chord, Demo, 3.5" disk drive for 2HD, 2DD.
AUTO PLAY CHORD one finger, fingered, pianist, memory.
PANEL MEMORY set, 1 ~ 5.
SEQUENCER 16 tracks. Storage capacity approximately 28,000 notes. Easy record, realtime record, step record. Functions: punch record, track assign, expression setting, edit ( song clear, track clear, track merge, quantize, measure erase, measure copy, measure delete, measure insert, velocity change ), play, medley.
COMPOSER 5 parts ( accomp 1, 2, 3, bass, drums ). Storage capacity approximately 8600 notes. Realtime record, step record. Functions: mode select, pattern copy, load single composer pattern. Memory: 2 banks x 10 ( 6 normal patterns, fill-in 1, fill-in 2, intro. ending ).

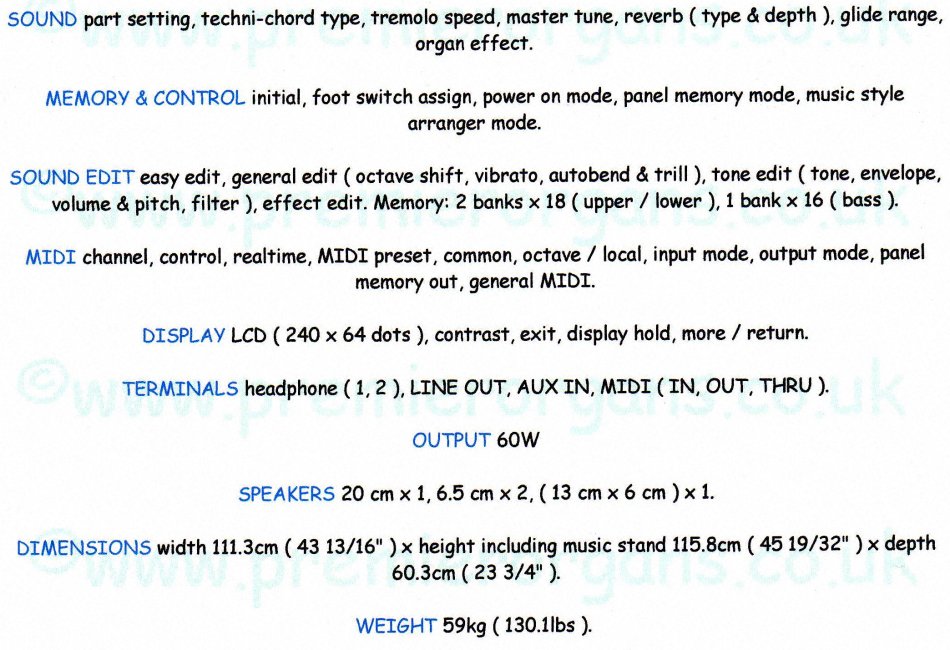

SOUND part setting, techni-chord type, tremolo speed, master tune, reverb ( type & depth ), glide range, organ effect.
MEMORY & CONTROL initial, foot switch assign, power on mode, panel memory mode, music style arranger mode.
SOUND EDIT easy edit, general edit ( octave shift, vibrato, autobend & trill ), tone edit ( tone, envelope, volume & pitch, filter ), effect edit. Memory: 2 banks x 18 ( upper / lower ), 1 bank x 16 ( bass ).
MIDI channel, control, realtime, MIDI preset, common, octave / local, input mode, output mode, panel memory out, general MIDI.
DISPLAY LCD ( 240 x 64 dots ), contrast, exit, display hold, more / return.
TERMINALS headphone ( 1, 2 ), LINE OUT, AUX IN, MIDI ( IN, OUT, THRU ).
OUTPUT 60W
SPEAKERS 20cm x 1, 6.5cm x 2, ( 13cm x 6cm ) x 1.
DIMENSIONS width 111.3cm ( 43 13/16" ) x height including music stand 115.8cm ( 45 19/32" ) x depth 60.3cm ( 23 3/4" ).
WEIGHT 59kg ( 130.1lbs ).
