Yamaha MDR3

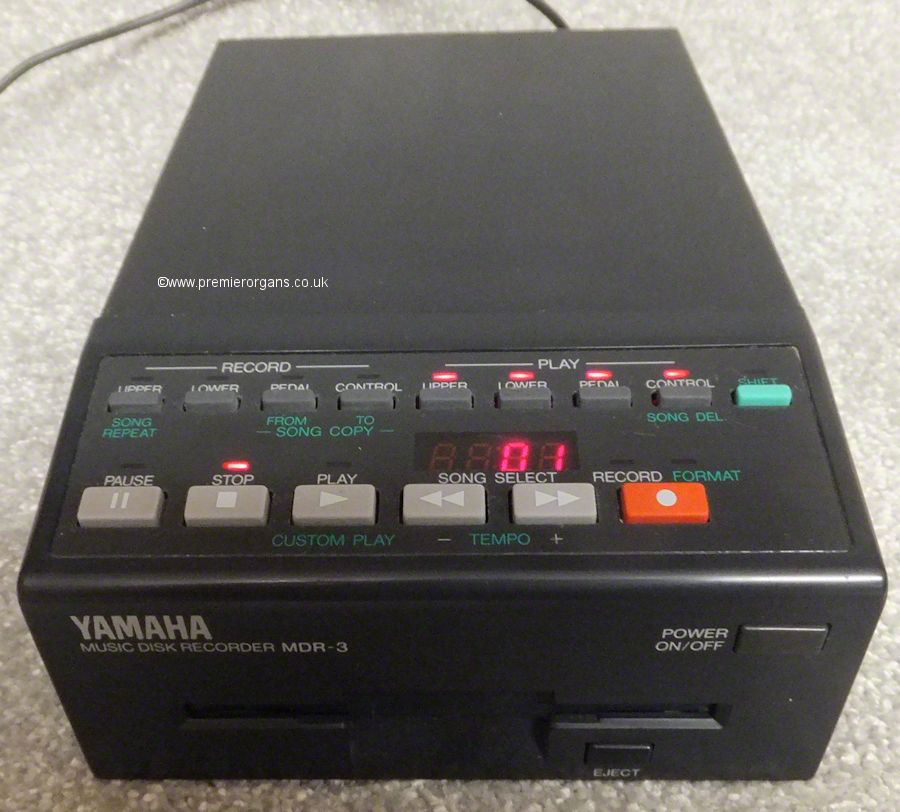

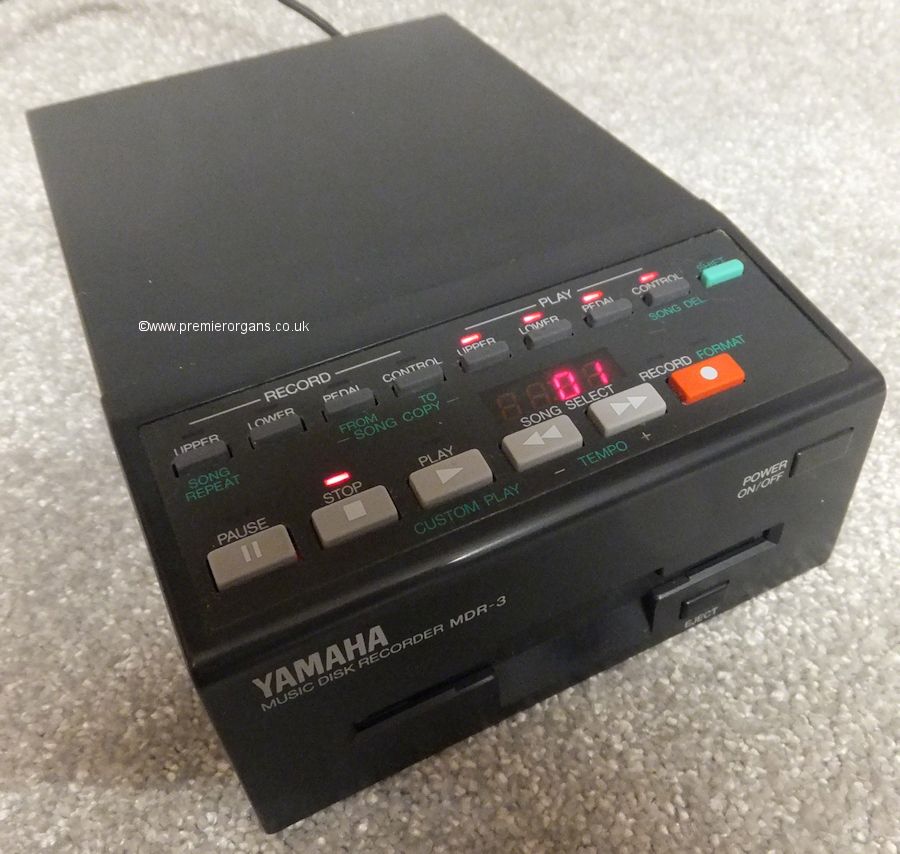

The Yamaha MDR-3 is a music disk recorder for Electones. It is a sophisticated recording device that lets you record your performances. It works like a cassette tape recorder, but it records performance data instead of sounds. The MDR-3 not only records the notes you play; it also remembers the voices and rhythms you select, the front panel controls you change, as well as all the expression pedal, footswitch and knee lever positions, to reproduce your performance exactly as you play it. Moreover, you can separately record different parts of your performance, building up a song part by part. Compatible with HS series / EL7 / EL15 / EL25
Controls
Pause, Stop,
Play, Record, Song Select (+/-), Forward, Rewind; Record
Section : Upper, Lower, Pedal, Control; Play Section: Upper,
Lower, Pedal, Control; Shift: Song Repeat, Song Copy (From,
To), Song Delete, Custom Play, Tempo (+/-), Disk
Format
Indicators
LED Display,
Pause, Stop, Play, Record, Format, Shift; Record Section:
Upper, Lower, Pedal, Control; Play Section: Upper, Lower,
Pedal, Control
Storage
3.5 in. floppy
disk (double sided-double density)
Memory
634k byte
(max.), 16 songs

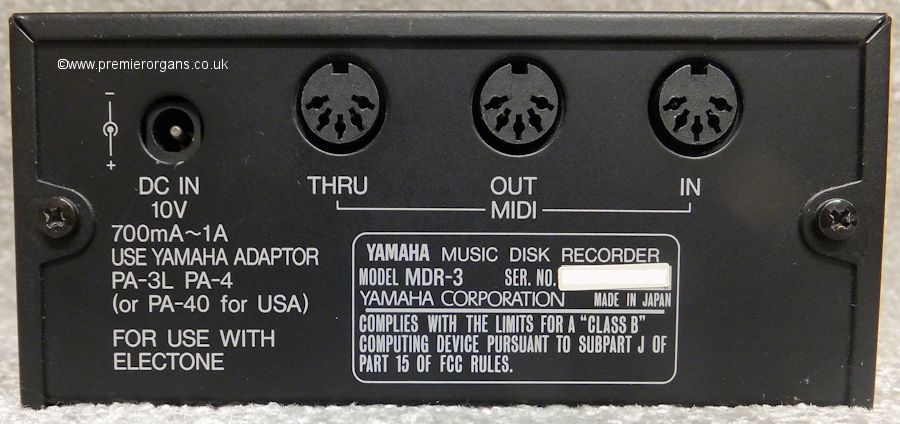

Input/ Output
Jacks
Midi (In, Out,
Thru), DC In
Power
supply
(DC In 10V;
700mA- 1A) Power Adaptor PA-3L, PA-4 (PA-40 for U.S.A).
Dimensions
135 mm x 200
mm x 63.5 mm (5.3" x 7.9" x 2.5")
Weight
1.3 kg (2.9
lbs.)
